Masaba Portable Crushing Plants are designed and built to be the toughest plants available.

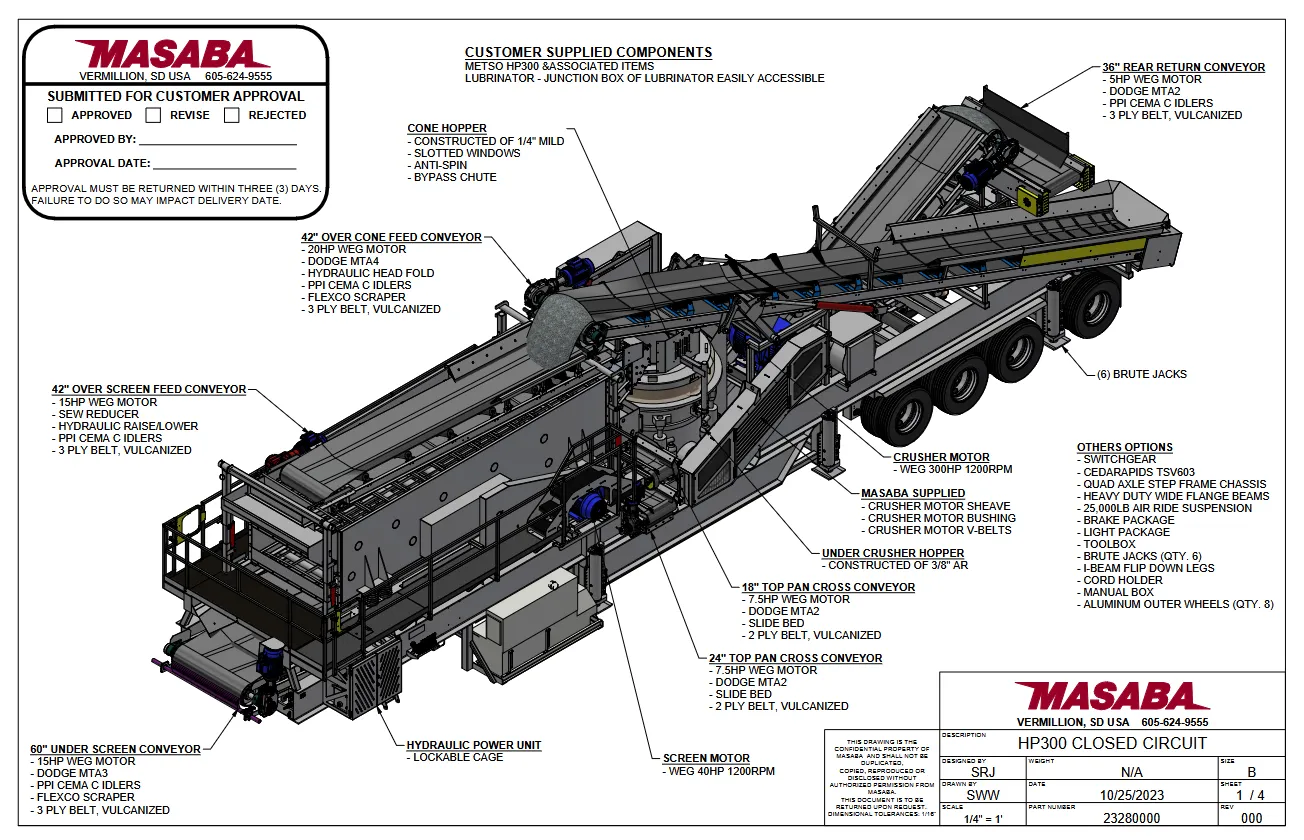

The Masaba Portable HP300 Plant is built on a Heavy Duty Wide Flange Beam Chassis (1) and features an Access Platform (2) complete with diamond plate decking, kickplates, and double 2” handrails. The 48” Discharge Conveyor (3) comes complete with impact idlers and 3 ply belting and discharges product from under the crusher and the 1/4” Cone Overflow Chute (4). Masaba offers both open and closed circuit plants with a variety of conveyor configurations.
SPECS
- Engine
- 300 HP WEG 1200 RPM motor.
- Equipment Type
- Cone Crusher
- Transport Size
- 66'5''x12'7''x14'4''
- Transport Weight
- 133500 lbs
- Reach
- ft
- Max Height
- ft
- Production Rate
- Up to 400tph
- Drum Size
- Belt Size
- Feed Opening
- 41"
- Jaw Size
- Screen Box Size
- Tank Size
