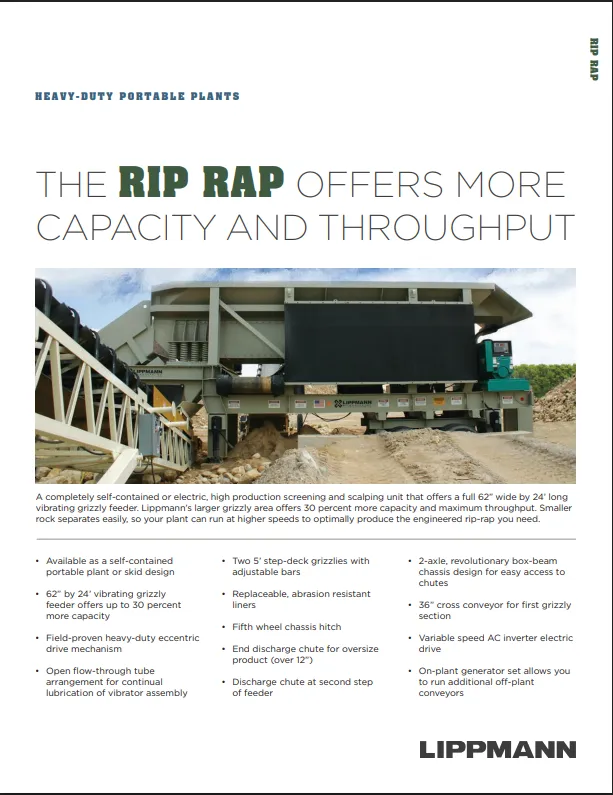

2025 LIPPMANN RIP-RAP PLANT 62x24

Portable Plant / Chassis • I-Beam welded steel truck frame with structural cross members, support legs, and kingpin • Tri axle with suspension, air brakes, taillights, reflectors, directional signals, mud flaps and radial tires • Feeder Module: Welded structural steel skid with feeder supports and feeder drive assembly Flared-type AR lined dump hopper Feeder module to be bolted connection to main chassis for easy removal. • AR lined grizzly by-pass chute • Elevated operator’s platform with railing and ladder access from main plant platform. • Plant includes all necessary crusher, feeder, and conveyor drive guards, and conveyor guarding. 6224f – 62" x 24' Horizontal VGF • Structural steel, welded feeder frame • Weld-in AR liners on feeder pan and side plates • 14’ long steel pan feeder • Two (2) 5' long step deck grizzly sections with AR adjustable bars First grizzly section – two (2) sets of finger tines at 3” Second grizzly section – adjustable rounded top grizzly bars • Feeder vibrating mechanism Model LLH-26 with two full-length, self-counterweighted solid steel shafts Helical gears Four (4) 130-mm spherical roller bearings and an oil splash lubrication system Mechanism is enclosed in a dustproof housing • Drive sheave included • 42” x 15’ (approx.) folding under grizzly discharge conveyor Included Options • Four (4) leveling hydraulic jacks • NEMA – 12 motor control center with dust-tight enclosure One (1) 40 hp Variable Frequency Drive – Feeder • AC variable speed drive controller • Door mounted speed pod for VFD adjustment One (1) 20 hp Full-Voltage Starter – Conveyor Two (2) 25 hp Full-Voltage Starters – Spares Door mounted Start/stop push buttons for each motor with wiring from enclosure to each on-plant electric motor (460v/60hz/3ph)
